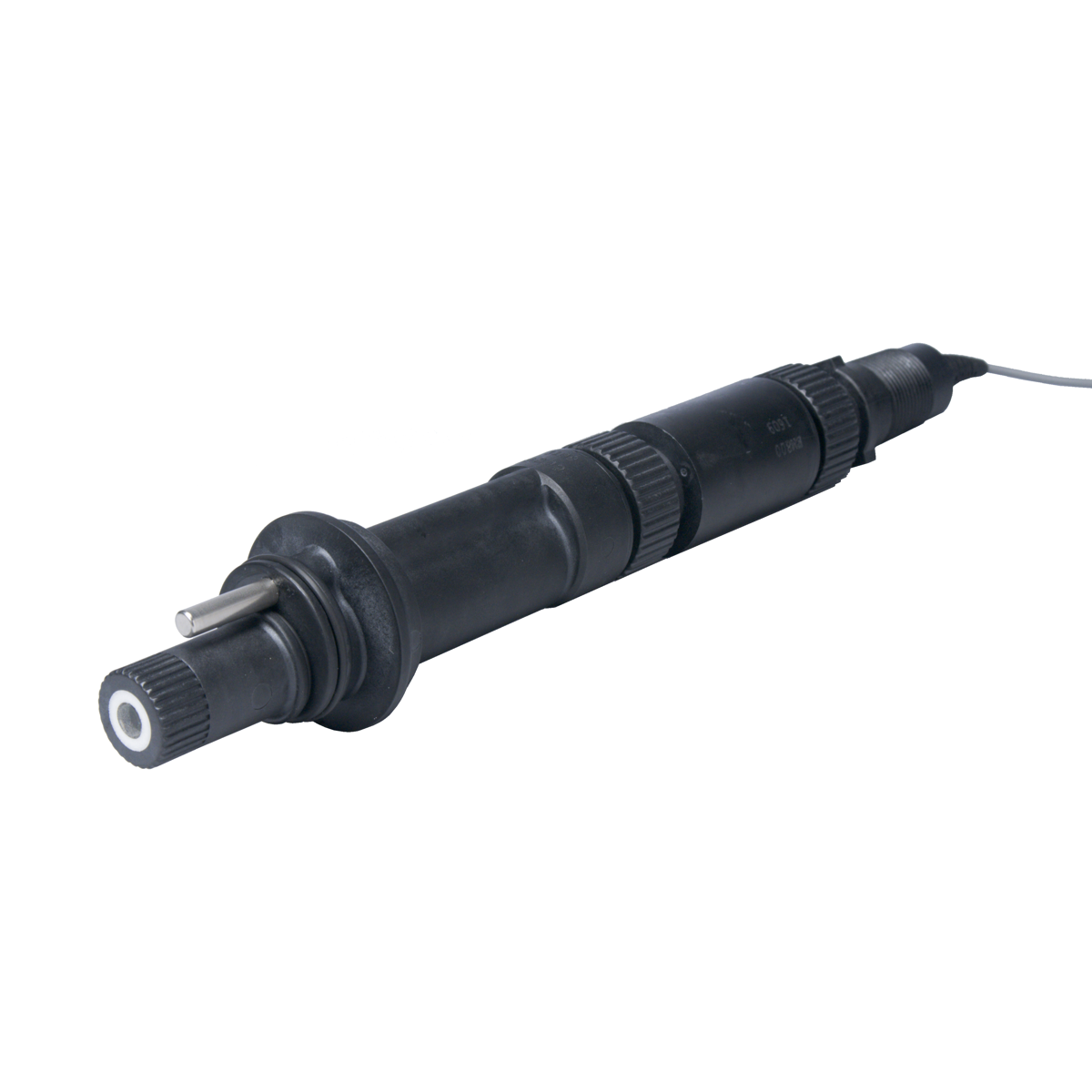

S8000

New Series pH/ORP Electrodes
SENSOREX

Submersion Mounting:
Options:
1. Use your existing S653 cap/cable and an EA890 adapter
2. Use EA899 + S853 for submersion mounting
3. Use EA899TC for submersion mounting with ATC and solution ground.
In-Line Mounting:
Options:
1. Use EA899TC (with ATC), S855 cap cable and install into FC800 tee.
2. Use EA899 (without ATC), S853 cap cable and install into FC800 tee.
Specifications:
- pH Range: 0 – 14pH (0-12.3pH with low Na+ ion error)
- Temperature Range: 0-100* Degrees Celsius, de-rated under pressure, *0-80 Degrees C in Flow Cell or with Electronics
- Pressure Range: 0-100 psig (7.5 Bar), de-rated under temperature
- Reference Type: Double Junction Sensorex ERP System
- ORP Redox Electrode: -1000mV to +1000mV
- HF resistant pH electrode: 0-12pH, 0-50 degrees Celsius
Wetted Materials:
- All electrodes and modules are molded of PPS (Polyphenylene sulfide).
- pH sensitive glass (pH electrodes), Platinum sealed in glass for ORP electrodes
- Module EA899TC also has SS316 pin for solution ground
- All o-rings are Viton
- FC800 flow cell and FC801 adapters are molded of CPVC
